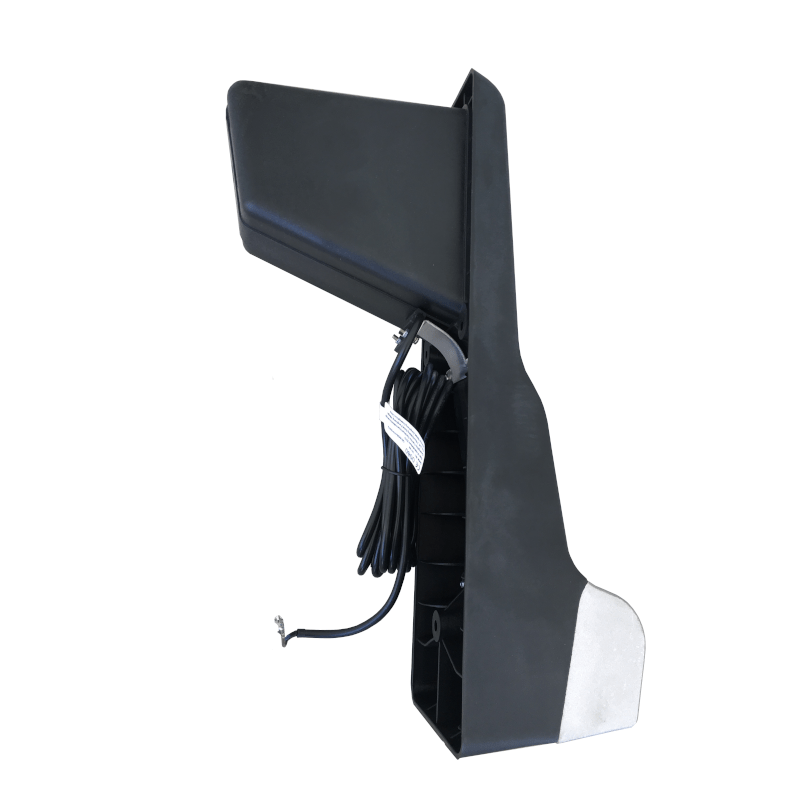

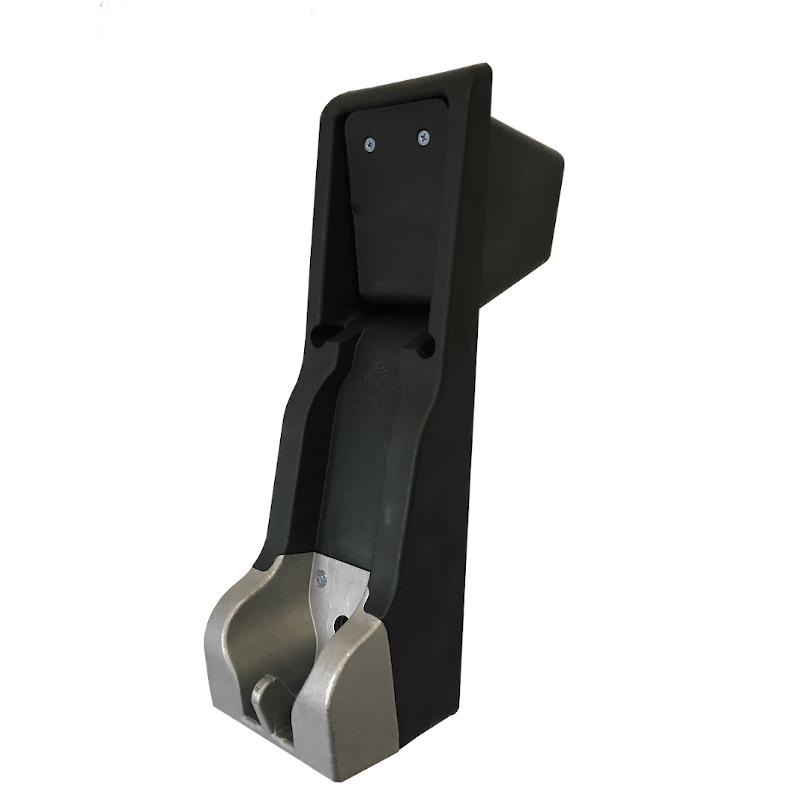

SANKI Nozzle Holster Poly with Low Voltage Nozzle Switch Assembly
Product image 1
Product image 2
Regular price $247.50
The SANKI nozzle holster gives your fuel dispensing nozzle a secure home while automatically controlling the pump. An integrated low voltage magnetic switch signals the pump as the nozzle is holstered or drawn, so the pump sits idle between fills and only runs when the nozzle is in use.
The switch is explosion proof and hazardous area rated to II 2G Ex mb IIC T6 Gb, certified by both ATEX and IECEx, so it is at home in fuel dispensing installations. The moulded polymer body is corrosion resistant and hard wearing for long service in demanding field conditions.
Overview
- Suitable for use with diesel
- Integrated explosion proof magnetic switch, normally open, for automatic pump control
- Hazardous area rated II 2G Ex mb IIC T6 Gb, ATEX and IECEx certified
- 50 VDC, 0.5 A maximum rating, ambient range -40 to +75 degrees C
- Overall dimensions 110mm W x 385mm H x 250mm D, with 140mm installed depth
- Suitable for flammable liquids such as petroleum when fitted with an intrinsically safe barrier
Downloads
Data Sheet (PDF)
