GO Helios Self Bunded Tank - 5,000L GO-Helios-5


Regular price $14,250.00

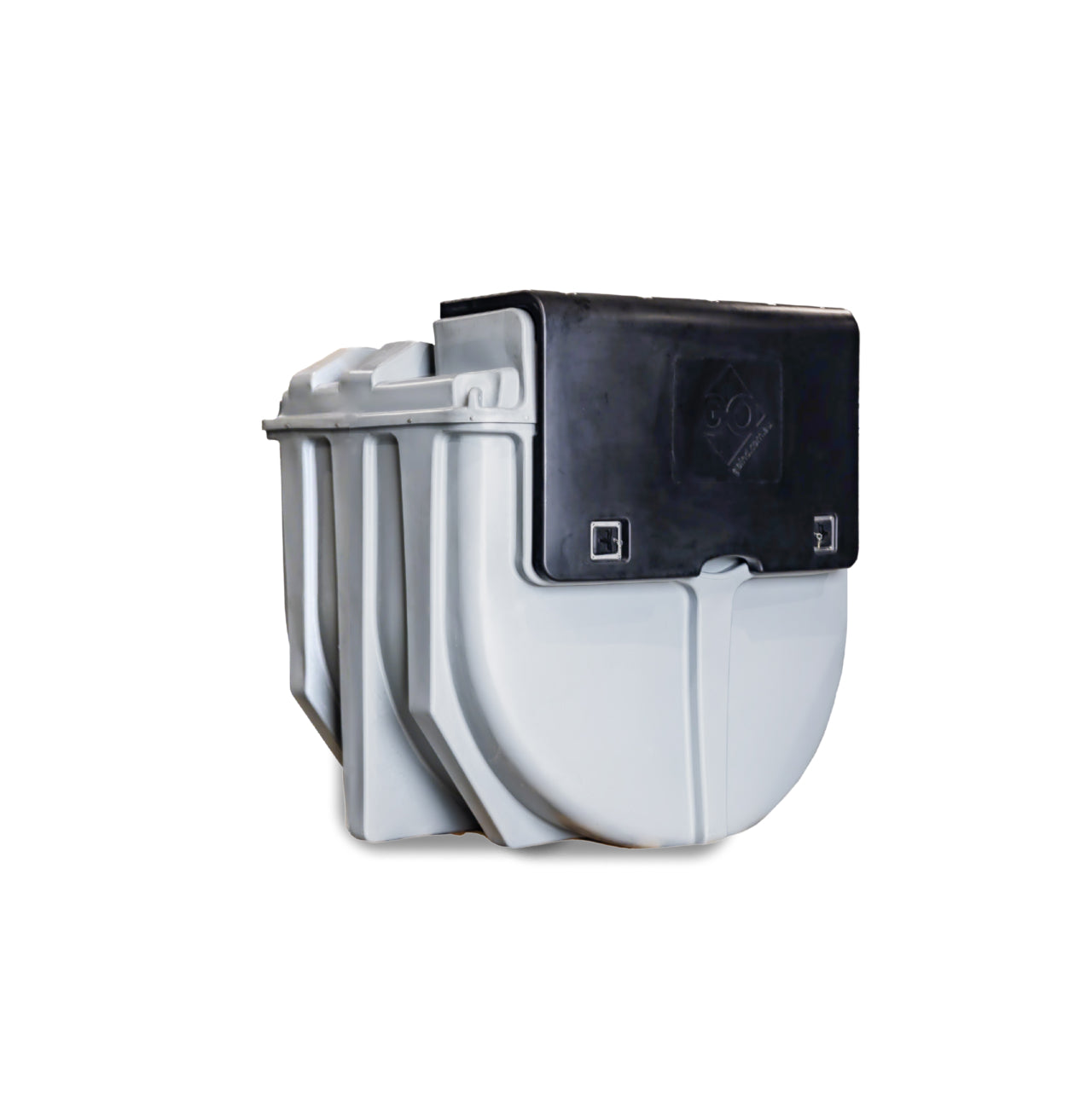

GO Helios Self Bunded Tank - 5,000L
![]() |
DATA SHEET |
Overview
Unlock superior fuel storage for your operation, no matter the scale. The GO Helios Self-Bunded 5,000L Tank delivers the same premium performance and compliance as its larger counterpart (GO Helios Self Bunded Tank - 10,000L), perfectly sized for businesses needing a more compact footprint. This robust poly tank provides a complete, reliable solution for on-site fuel management. Engineered for smaller-scale operations that refuse to compromise on safety and efficiency. Whether you need a dependable Diesel tank or a specialised AdBlue tank, this unit offers the same advanced features in a more versatile size.
How it Works
This isn't just a container, it's a fully integrated fuel management system designed for maximum safety and immediate use.
- 110% Self-Bunded Security: Its double-walled, self-bunded design offers 110% containment, preventing spills and eliminating the need for costly concrete bunds.
- Plug-and-Play Simplicity: Arrives ready-to-use with a pre-installed PIUSI pump. Just plug in and go. Available in 240V or 12V with various flow rates.

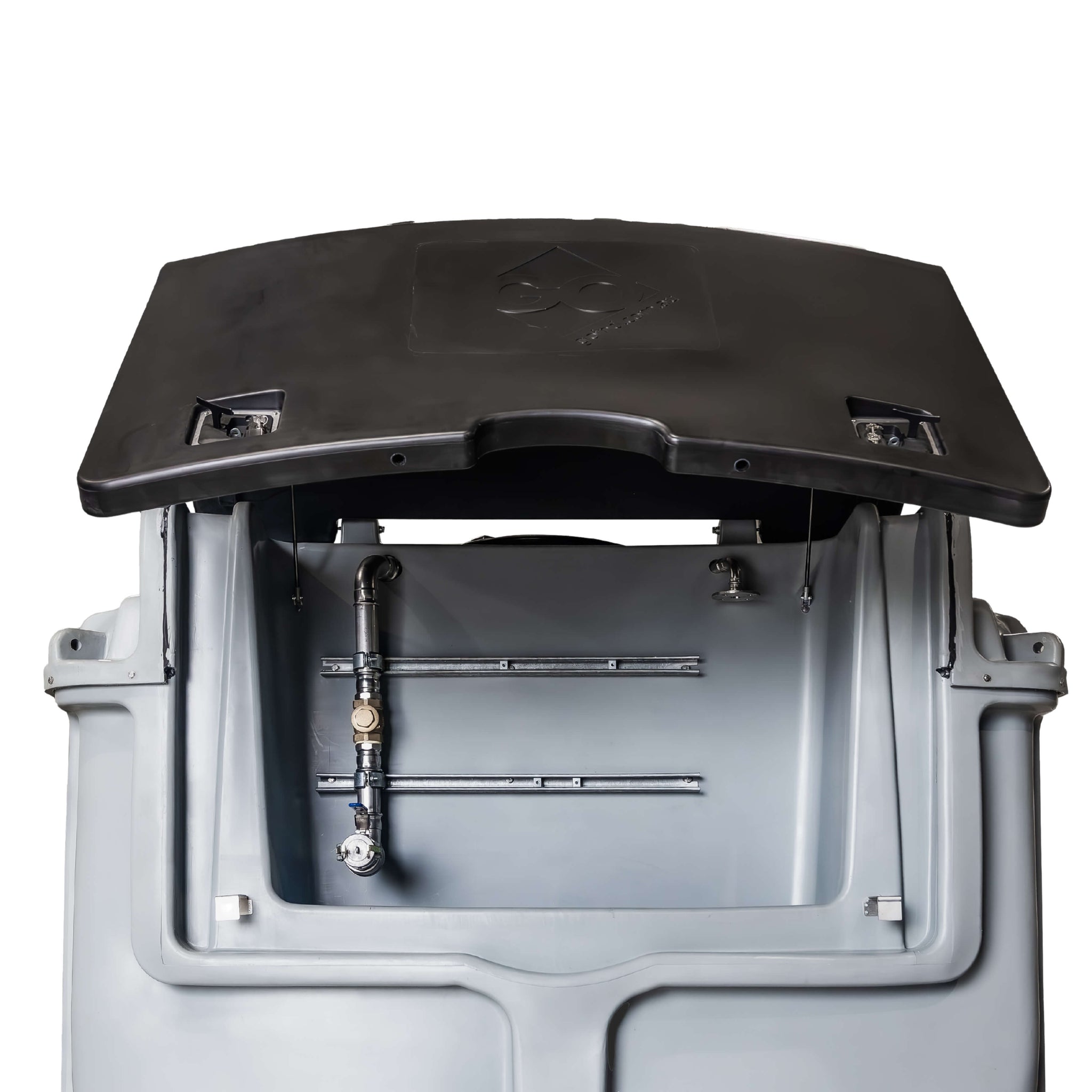

- Integrated Pumping Cabinet: The integrated cabinet with an 80L bund contains spills during dispensing, protecting your site and the environment.
- True Capacity Guarantee: Our design ensures the safe fill level allows for maximum usable storage, so you get the full capacity you pay for.
Specifications
-
110% Self-Bunded: Double-walled design contains leaks and spills. The outer tank is engineered to hold 110% of the inner tank's capacity, providing peace of mind and eliminating the need for costly and space-consuming concrete bunds.
-
Plug & Play: pump system is installed and ready to use - Quality PIUSI pump, choose an option to best suit - 240V, 12V, High or Low Flow options.
-
Fully Integrated Pumping Cabinet with 80L Bund: Ensures overfill protection at the point of dispensing with a fully integrated bund in the cabinet to collect fill spillage.
-
True Capacity Guarantee: Safe fill level ensures maximum usable storage.
-
Long-life build: Unlike steel, UV-stabilised polyethylene won’t rust, corrode or crack.
-
Australian made: built for harsh climates by a trusted local manufacturer. UV-resistant, will not rust.
-
Australian Standards Compliance: Designed to AS1940:2017 (The Storage and Handling of Flammable and Combustible Liquids) and AS4766 (Polyethylene Storage Tanks).
Dimensions
- Length: 2,410cm
- Width: 2,320cm
-
Height: 2,292cm
Weight
- Diesel Tank: 570KG
- AdBlue Tank: 615KG
Features
-
Minimum Clearances
- Tank to be accessible for fuel deliveries, with barriers to prevent
vehicle damage. - 3m from buildings, public areas, boundary or ignition sources
- 8m from other flammable storage
- 15m vegetation clearance in rural areas
- Tank to be accessible for fuel deliveries, with barriers to prevent
-
Base Requirements
- Concrete bitumen, or compacted crusher dust
- 75–100mm thick, extending 300mm beyond the tank base
-
Fire & Safety
- Keep a fire extinguisher within 10–15m
- Signage: "Diesel Fuel – No Smoking", tank capacity and Warning
Signage - this comes standard with your Fuel Bunker
-
Spill & Electrical Safety
- Have a spill kit on site and train staff in its use
- If connecting to mains, an electrician must install the power and
earthing rod.
-
Built-in Compliance Features
- 110% bunding capacity - A bunded tank is a tank within a tank
the outer tank captures leaks or spills from the inner tank. - Breather vents and overfill protection
- Earthing rod and antistatic probe included
- Pre-fitted diesel-grade pumps, hoses, and nozzles
- Lockable cabinet with built-in containment
- 110% bunding capacity - A bunded tank is a tank within a tank
