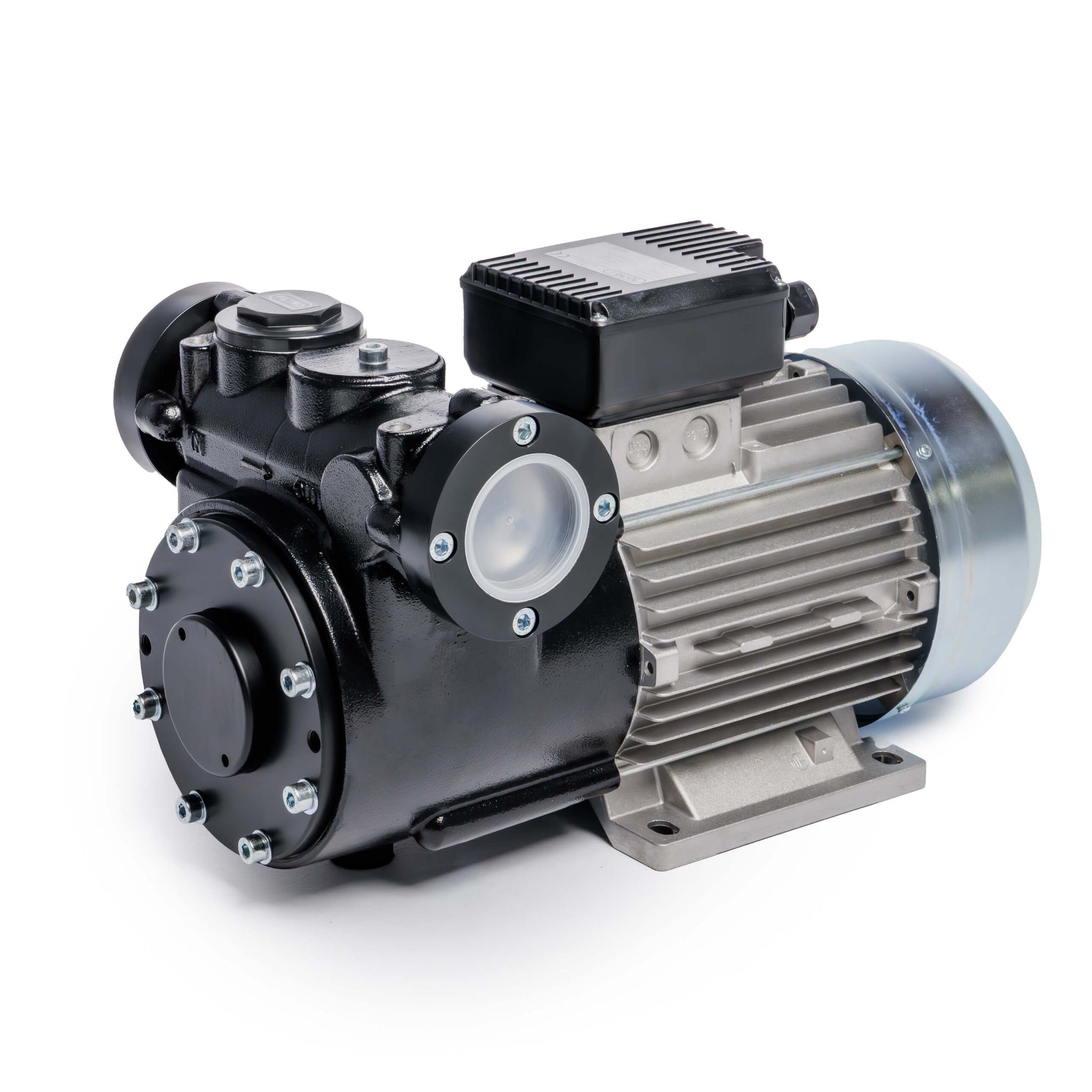

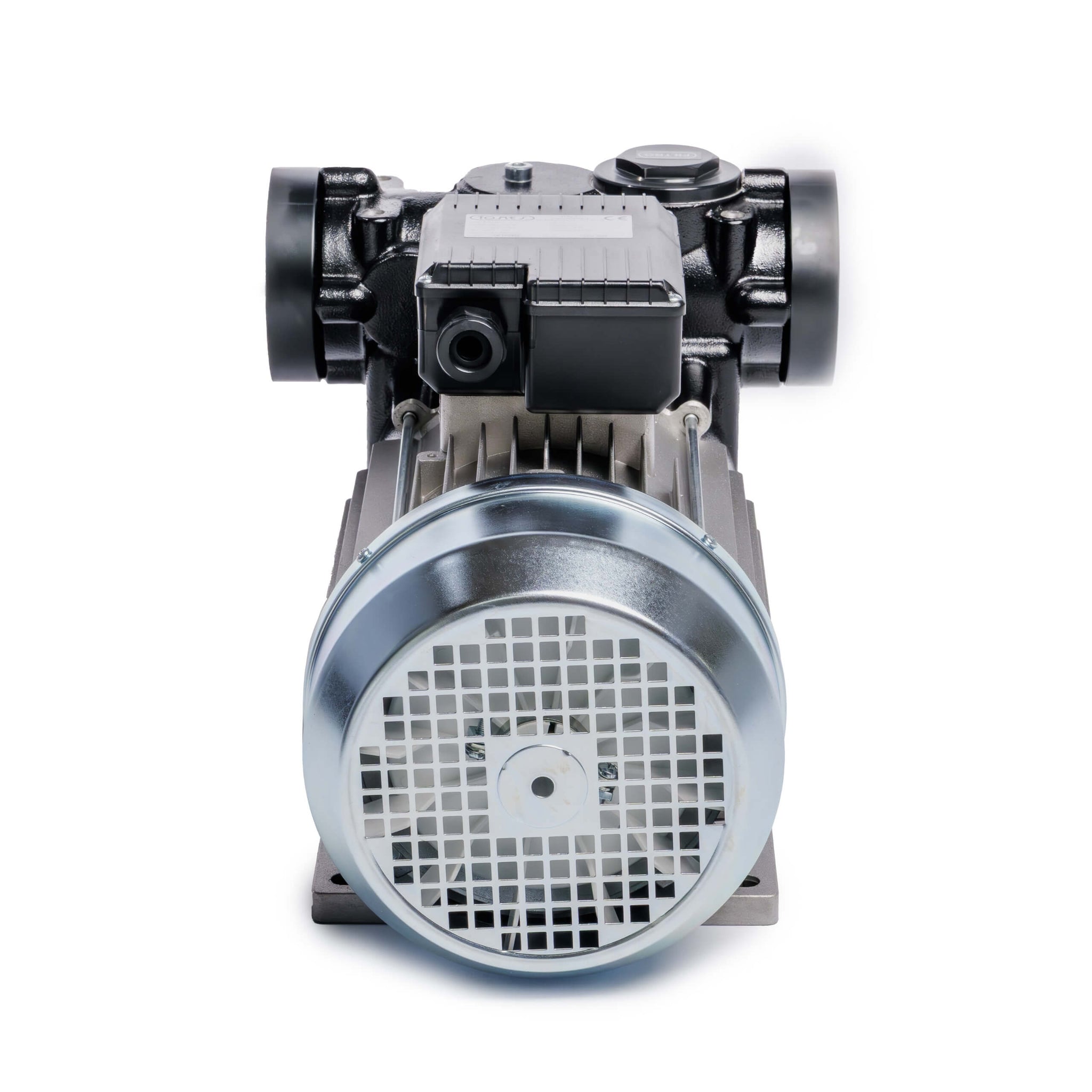

Tomes Heavy-Duty Diesel Pump 191 LPM – 240V AC Powered DETP0855
Regular price $2,722.00
Tomes Heavy-Duty Diesel Pump 191 LPM – 240V AC Powered DETP0855
| DATA SHEET |
Overview
The Tomes Heavy-Duty Diesel Pump delivers exceptional performance with its robust construction and reliable 240V AC power system. This premium electric diesel transfer pump features durable cast iron housing and precision-engineered components, making it the perfect electric vane pump for demanding industrial applications. Ideal for fuel transfer, tank maintenance, and heavy-duty operations, this electric pump handles 191 litres per minute with ease. Whether you're managing fleet refuelling, construction site operations, or agricultural tasks, this diesel pump provides the reliability and efficiency your operation demands.
How it Works
This pump operates using a powerful electric vane system that creates consistent suction to draw diesel fuel through the inlet and push it out through the discharge port at an impressive 191 litres per minute. Powered by reliable 240V AC electricity, this robust pump maintains steady pressure throughout the transfer process, ensuring efficient and dependable fuel handling every time.
- Electric Vane Technology: Precision-engineered vanes create smooth, pulsation-free fuel flow
- 240V AC Power System: Consistent electrical supply delivers reliable performance
- Self-Priming Design: Automatically draws fuel without manual priming
- High Flow Rate: Processes 191 litres per minute for rapid fuel transfer
- Durable Construction: Cast iron housing withstands demanding industrial conditions
- Simple Operation: Straightforward on/off control for hassle-free use
- Continuous Duty Rating: Built for extended operation without overheating
Specifications
- Flow Rate (1 bar): 191 ltr/min
- Voltage: 230V 50Hz
- Max Pressure: 4 Bar

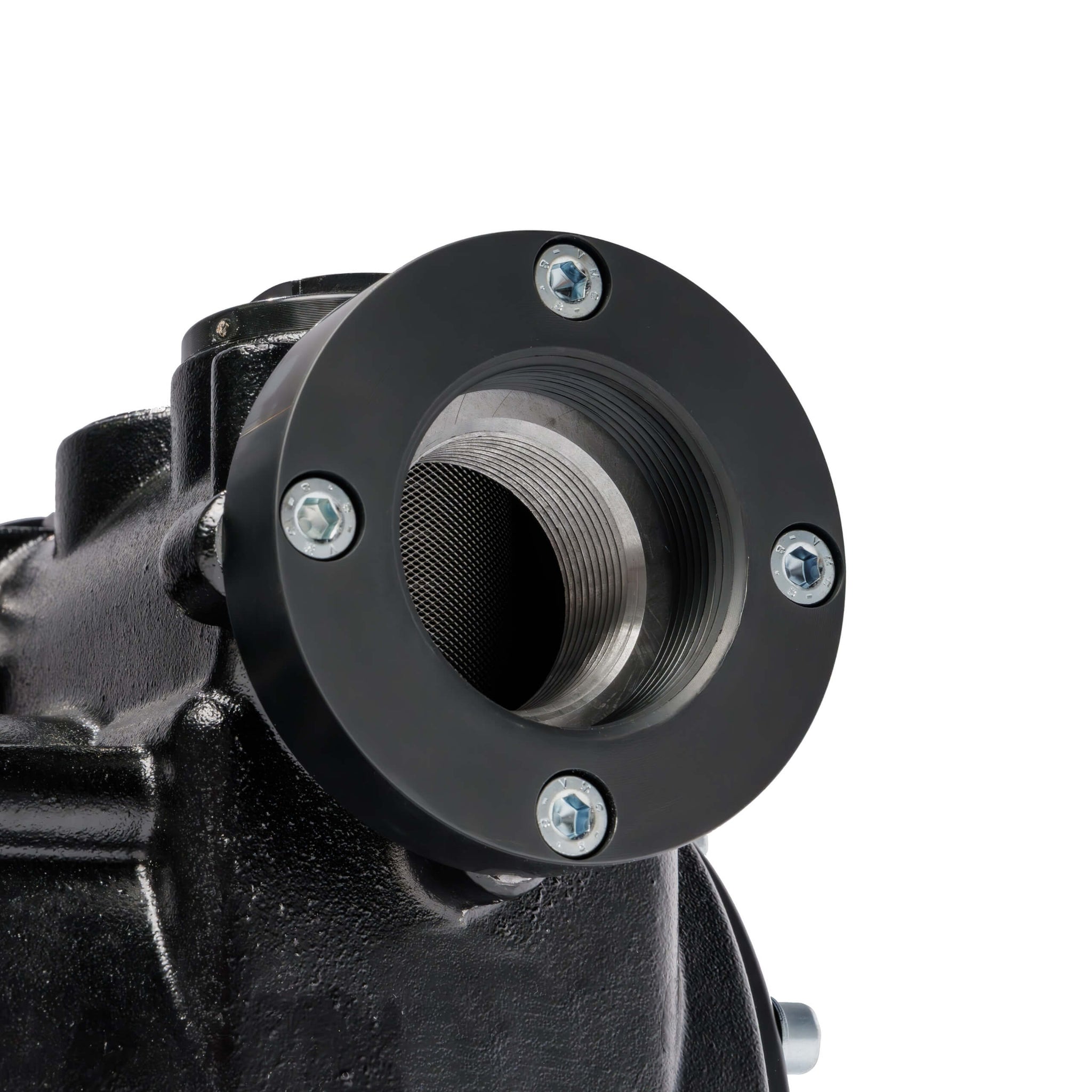

- IN: F 2" BSP
- OUT: F 2" BSP
- Flange IN-OUT: Yes
- Suction: 3 mt
- Engine Rotation: 1400 rpm
- Power: 2237watt (3hp)
- Ampere: 11,7 Amp.

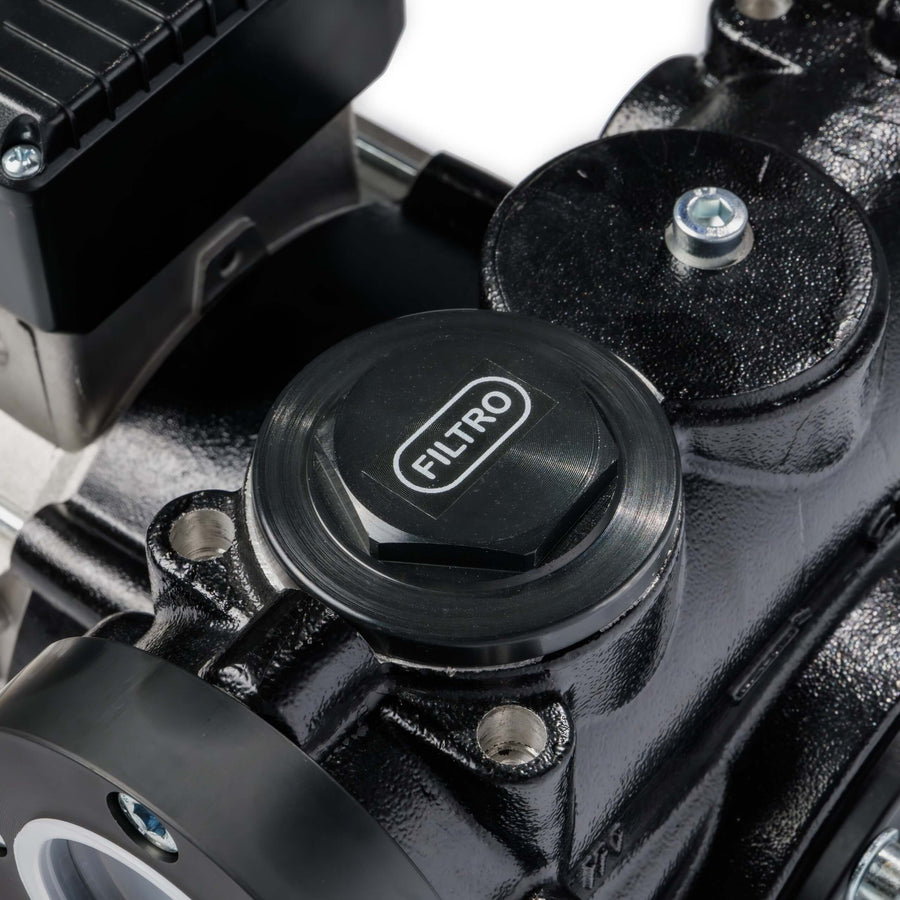

- Integrated Filter: 130um
- Bleeder valve: Included
- Seal: 6 bar Mechanical seal NBR

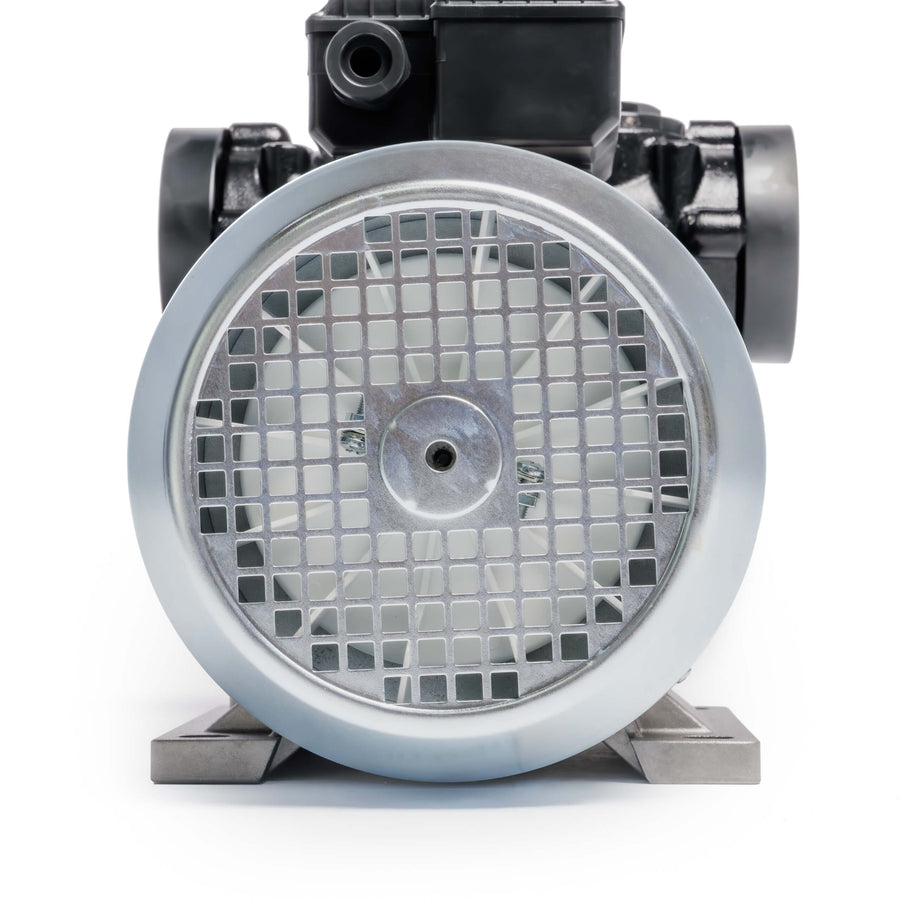

- Motor Frame: 100L MEC
- Noisiness: 80 db
- Operating Temperature: +40 / -10
- Compatible Liquids: Diesel
Dimensions
- Length: 45cm
- Width: 27cm
- Height: 37cm
- Weight: 38 kg
Features
- Self Priming: Automatic
- Motion Transmission: Supported Crankshaft
- Type Rotor: 6 Vanes
- Pump Body: Aluminum
- Rotor Insert: Cast iron
- By-pass: Included
- AntiFlood.motor.protect: Included
