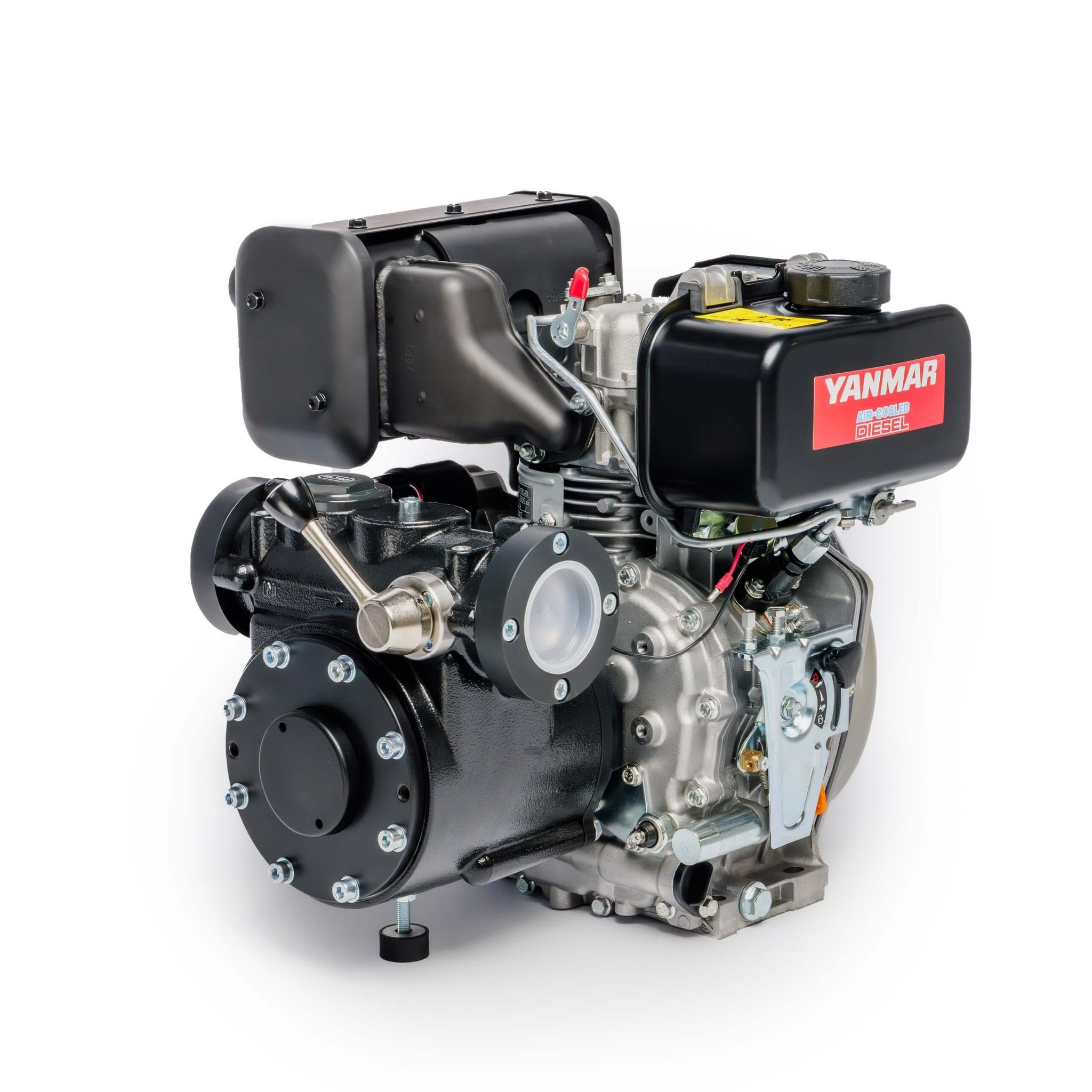

Tomes Heavy-Duty 241 LPM Diesel Pump – Diesel Engine Driven DMTP0012
Regular price $7,975.00
Tomes Heavy-Duty 241 LPM Diesel Pump – Diesel Engine Driven DMTP0012
 |
DATA SHEET |
Overview
The Tomes Heavy-Duty 241 LPM Diesel Transfer Pump – Diesel Engine Driven is built for high-volume diesel transfer in challenging environments. This self-priming vane pump is a portable solution for professionals needing to move large fuel quantities quickly. Its robust design and high-performance engine make it perfect for refuelling agricultural machinery, construction equipment, and industrial vehicles, ensuring consistent and dependable performance in the field.
How it Works
This diesel transfer pump operates using a self-priming electric vane pump, driven by its integrated diesel engine. The engine powers the pump's rotor and vanes, which displace and move the fluid, allowing for efficient and rapid high-volume fuel transfer.
- Self-Priming: The pump's design allows it to automatically draw fuel from a source without manual priming, saving time and effort.
- Vane Mechanism: Internal vanes within the pump create chambers that expand to pull fuel in and then contract to push it out, generating a smooth, continuous flow.
- Diesel Engine Power: The independent diesel engine provides the necessary power to the pump, making it a highly portable solution that doesn't rely on external power sources.
Specifications
- Flow Rate (1 bar): 241 ltr/min
- Max Pressure: 2,5 Bar
- IN: F 2" BSP
- OUT: F 2" BSP
- Flange IN-OUT: Yes
- Suction: 2,5 mt
- Engine Rotation: 3600 rpm
- Power: 3550watt (4,7hp)
- Seal: 6 bar Mechanical Seal
- Valve Start Eased: Included
- Compatible Liquids: Diesel
Dimensions
- Length: 40cm
- Width: 40cm
- Height: 55cm
- Weight: 43 kg
Features
- Combustion Engine: Diesel 4,7Hp 3500RPM
- Start Engine: Electric
- Self Priming: Automatic
- Motion Transmission: Supported Crankshaft
- Type Rotor: 6 Vanes
- Pump Body: Aluminum
- Rotor Insert: Cast iron
- By-pass: Included
